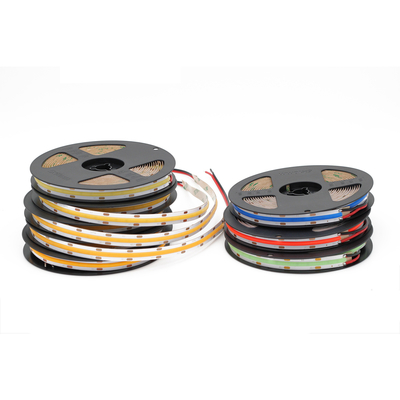

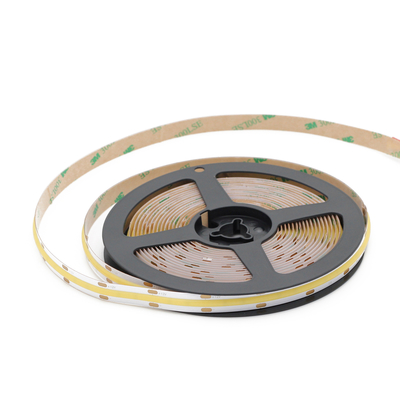

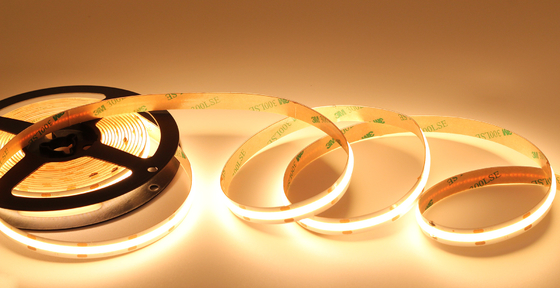

DC12V 24V COB LED Strip Light 8mm High Density Flexible Tape Light Dimmable Linear Ribbon

DC12V 24V COB LED Strip Light 8mm High Density Flexible Tape Light Dimmable Linear Ribbon
DC12V 24V COB LED Strip Light 8mm High Density Flexible Tape Light Dimmable Linear Ribbon
DC12V 24V COB LED Strip Light 8mm High Density Flexible Tape Light Dimmable Linear Ribbon DC12V 24V COB LED Strip Light 8mm High Density Flexible Tape Light Dimmable Linear Ribbon DC12V 24V COB LED Strip Light 8mm High Density Flexible Tape Light Dimmable Linear Ribbon DC12V 24V COB LED Strip Light 8mm High Density Flexible Tape Light Dimmable Linear Ribbon DC12V 24V COB LED Strip Light 8mm High Density Flexible Tape Light Dimmable Linear Ribbon DC12V 24V COB LED Strip Light 8mm High Density Flexible Tape Light Dimmable Linear Ribbon

Large Image :  DC12V 24V COB LED Strip Light 8mm High Density Flexible Tape Light Dimmable Linear Ribbon

Product Details:
Place of Origin: CHINA
Brand Name: HOYOL
Certification: CE/ROHS/FCC
Model Number: HY-COB12/24V8-W320-Ra90
Payment & Shipping Terms:
Minimum Order Quantity: 200m
Price: 1usd/m~2usd/m
Packaging Details: Flexible strip with reel, Anti-static foil bag, Carton box
Delivery Time: 15-20 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 100000m per month

DC12V 24V COB LED Strip Light 8mm High Density Flexible Tape Light Dimmable Linear Ribbon

Description
Name: HOYOL Cob RGB Led Strip 320Leds/M 12V/24V Light Source: COB LED
CCT: 2700-6500K LED QTY: 320LEDs/m
Length: 5 Meter/reel Or Customized Lumen Effieciency: >100lm/w
Input Voltage(V): 12V/24V Lifespan (hours): 50000
Color Rendering Index(Ra): 90 PCB Width: 8mm
Warranty(Year): 3-Year
High Light:

DC12V COB LED Strip Light

,

8mm COB LED Strip Light

,

Dimmable Linear Flexible Tape Light

DC12V 24V COB LED Strip Light 8mm High Density Flexible Tape Light Dimmable Linear Ribbon 3000K 4000K 6000K

COB LED Strip Light 8mm Dc 12v 24v 320Leds/M IP65 Light Strips For Room With Remote

Product Description
1. LED Strip light breakpoint continue,one led broken,no affect other the behind led work.
2. Each LED is individually addressable, with 8 bits of green, red and blue data shifted in for 24 bit color;
3. With 4pin LED lamps for the digital strip
4. This product can achieve effects and animations by controller , for example RGB seven colors gradual change,jumping change, Fading , flashing, strobing , color chasing, color sliding, Fading, Dimming mode etc.
5. This is the highest resolution for the moment
6. Controller, Power supply are available
7. we have DC12V; 30/60 leds per meter. Great choice.
8. The product is widely used in building outline lights, entertainment quasi-decorative lighting, advertisement decorative lighting and so on.
10. Low voltage DC power supply safety, Convenience.



Product Name
HY-COB12/24V8-W320-Ra90
LED Type
COB LED
LED Quantity
320 led/m
Work Voltage
12V / 24V DC
Power
8W/M
Typical CCT
2700-6500K
Ra
90
Brightness
100lm/w
PCB Thickness
2 oz
PCB Size
8mm
IP Rating Available
IP20/IP53/IP65/IP66/IP67/IP68
Certification
CE/ROHS/
Warranty
3-Year





DC12V 24V COB LED Strip Light 8mm High Density Flexible Tape Light Dimmable Linear Ribbon 0





IP Rating
DC12V 24V COB LED Strip Light 8mm High Density Flexible Tape Light Dimmable Linear Ribbon 1

IP20
Non-waterproof, 3M adhesive on the back.
IP54
Paint a thin layer of silicon glue on the led strip, 3M adhesive on the back.
IP65
Paint a thick layer of silicon glue on the led strip, 3M adhesive on the back.
IP66
Wrap the led strip by heat shrink tube,3M adhesive on the back.
IP67
Put the led strip into the silicone tube, without 3M adhesive on the back.
IP68
Put the led strip into the silicone tube, and filled with glue, or extrusion the led strip to silicon tube


Application
DC12V 24V COB LED Strip Light 8mm High Density Flexible Tape Light Dimmable Linear Ribbon 2


 DC12V 24V COB LED Strip Light 8mm High Density Flexible Tape Light Dimmable Linear Ribbon 3

FAQ:

Q1. Can I have a sample order for LED Strip?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time of LED Strip?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for LED Strip?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for LED Strip?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on LED Strip?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the LED Strip?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
