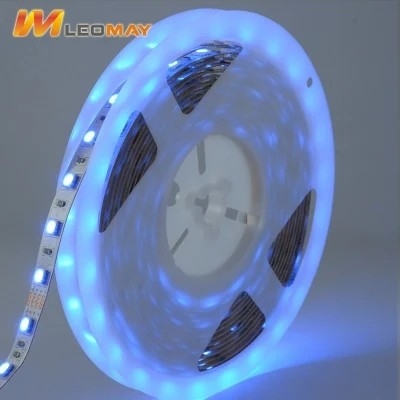

Product Details:
|
Name: | RGB LED Strip Light | Chip Brand: | Sanan |
---|---|---|---|
CCT: | 2700K-6500K | Color: | White |
LED Type: | SMD 2835 | Lumen Effieciency: | >110lm/w |
High Light: | Smd2835 Rgb LED Strip Light,6500K Rgb LED Strip Light,6500K rgbw led strip |
12V 2835 60 LED Strip 24V 2835 60 LED Strip
1. LED Strip light breakpoint continue,one led broken,no affect other the behind led work.
2. Each LED is individually addressable, with 8 bits of green, red and blue data shifted in for 24 bit color;
3. With 4pin LED lamps for the digital strip
4. This product can achieve effects and animations by controller , for example RGB seven colors gradual change,jumping change, Fading , flashing, strobing , color chasing, color sliding, Fading, Dimming mode etc.
5. This is the highest resolution for the moment
6. Controller, Power supply are available
7. we have DC12V; 30/60 leds per meter. Great choice.
8. The product is widely used in building outline lights, entertainment quasi-decorative lighting, advertisement decorative lighting and so on.
10. Low voltage DC power supply safety, Convenience.
Product Name
|
HY-LS60D008W24/12-2835
|
LED Type
|
SMD 2835
|
LED Quantity
|
60 led/m
|
Work Voltage
|
12V / 24V DC
|
Power
|
11w/m
|
Typical CCT
|
2700K/3000K4000K/6000K/Red/Green/Blue/Pink/UV
|
Ra
|
80/90/
|
Brightness
|
900-1100lm/m
|
PCB Thickness
|
2 oz
|
PCB Size
|
8mm
|
IP Rating Available
|
IP20/IP53/IP65/IP66/IP67/IP68
|
Certification
|
CE/ROHS/
|
Warranty
|
2-Year
|
IP20
|
Non-waterproof, 3M adhesive on the back.
|
IP54
|
Paint a thin layer of silicon glue on the led strip, 3M adhesive on the back.
|
IP65
|
Paint a thick layer of silicon glue on the led strip, 3M adhesive on the back.
|
IP66
|
Wrap the led strip by heat shrink tube,3M adhesive on the back.
|
IP67
|
Put the led strip into the silicone tube, without 3M adhesive on the back.
|
IP68
|
Put the led strip into the silicone tube, and filled with glue, or extrusion the led strip to silicon tube
|
Why us
1. High quality:
As a company in LED field for over 17 years with certificates like ISO9001:2008, ISO14001, CE, RoHS, SAA, TUV, SGS, etc., ISHINELUX implements the strict procedures in daily production. We only select the best quality raw material for our product such as CREE, BRIDGELUX, EPISTAR LED chips, MEANWELL driver, RUBYCON capacitor, etc. We use the newest heat dissipation technology such as active cooling, cooling fan, and fins heat sink to ensure stability and durability of the products. ISHINELUX always implement its production strictly abide by the strict quality control system. And every product has to go through 24 hours aging test before shipment to ensure high stability.
2. Most Competitive Price:
We believe future development is based on any possible cooperation today, no matter how big the order is. Therefore, we control the profit at a very limited level. We believe the future development lies in the current cooperation. Our target is to produce high quality goods with very limited profit margin for the mutual benefits of both of us.
3. Fast delivery:
Lead time only 3-5 working days for sample order after payment confirmed, 15-20 working days for bulk orders.
4. 100% Satisfaction Service:
Any question regarding products raised by customers will be replied within 24 hours. For any after-sales complaint, ISHINELUX absolutely shoulders the responsibility to solve it based on customer-oriented solution; this is why our business is skyrocketing.
5. Continuous R&D Investment:
To keep advantages in LED manufacturing, ISHINELUX continuously invests10 to15% of its profit on R&D of core technologies like heat dissipation, driver, optics, etc. And all the 15 engineers has education background above bachelor, further education mechanism is another driving force of ISHINELUX’S development.
6. OEM&ODM service available.
FAQ:
Q1. Can I have a sample order for LED Strip?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time of LED Strip?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for LED Strip?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LED Strip?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on LED Strip?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the LED Strip?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
