225W High Power UV LED COB Module LED Curing Lamp Water Cooled / Air Cooled

225W High Power UV LED COB Module LED Curing Lamp Water Cooled / Air Cooled
225W High Power UV LED COB Module LED Curing Lamp Water Cooled / Air Cooled 225W High Power UV LED COB Module LED Curing Lamp Water Cooled / Air Cooled 225W High Power UV LED COB Module LED Curing Lamp Water Cooled / Air Cooled 225W High Power UV LED COB Module LED Curing Lamp Water Cooled / Air Cooled

Large Image :  225W High Power UV LED COB Module LED Curing Lamp Water Cooled / Air Cooled

Product Details:
Place of Origin: China
Brand Name: HOYOL
Certification: CE/ROHS/FCC
Model Number: HY-COB Module
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 5-7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000pcs per day

225W High Power UV LED COB Module LED Curing Lamp Water Cooled / Air Cooled

Description
Product Name: 225W High Power UV LED COB Module LED Curing Lamp Power: 225W

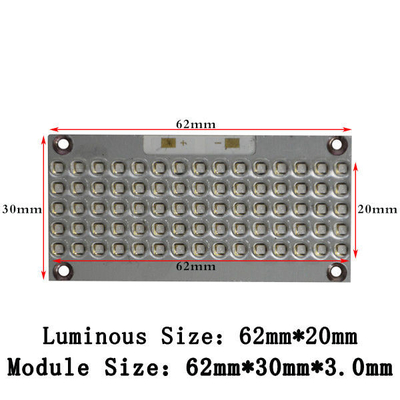

Module Size: 62mm*30nm*3.0mm Luminous Size: 63mm*20mm
Voltage: 51-57V Current: 2.5-3.5A
View Angle Of The Lens: 60, 120 Degree Warranty: 2 Years
High Light:

COB smd UV LED module

,

UV LED COB Module

,

Curing Lamp UV LED module

225W High Power UV LED COB Module LED Curing Lamp



Product Description

The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
Product Name UV LED COB Module 6230
Power 225W
Color UV
Number of lamp beads 75 pcs
Diode type COB smd
Lens Material of Diode quartz
View Angle of the Lens 60, 120 degree
Module size 62mm*30nm*3.0mm
Luminous Size 62mm*20mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 51-57V
Current 2.5-3.5A
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package lamp beads
Module material 3.0mm COB Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China



225W High Power UV LED COB Module LED Curing Lamp Water Cooled / Air Cooled 0



225W High Power UV LED COB Module LED Curing Lamp Water Cooled / Air Cooled 1



225W High Power UV LED COB Module LED Curing Lamp Water Cooled / Air Cooled 2



FAQ:


Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ alibaba payment.
Q4. Can adjustable of UV intensity ?
A: Yes, the intensity is 0-100% adjustable. We designed different.
Q5. How many days do you need for preparing order?
A: We need 3-7 days for normal order, Custom product cycle is 15-20 days.
