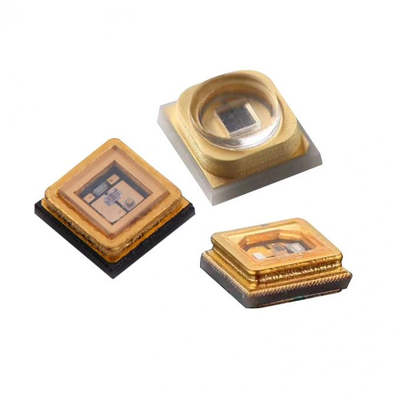

2W 254nm UVC LED Chip 150ma 200ma LED Diodes Quartz Glass Lens

2W 254nm UVC LED Chip 150ma 200ma LED Diodes Quartz Glass Lens
2W 254nm UVC LED Chip 150ma 200ma LED Diodes Quartz Glass Lens 2W 254nm UVC LED Chip 150ma 200ma LED Diodes Quartz Glass Lens 2W 254nm UVC LED Chip 150ma 200ma LED Diodes Quartz Glass Lens

Large Image :  2W 254nm UVC LED Chip 150ma 200ma LED Diodes Quartz Glass Lens

Product Details:
Place of Origin: China
Brand Name: HOYOL
Certification: CE/ROHS/FCC
Model Number: HY-SMD-UVC3535
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 5-7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000pcs per day

2W 254nm UVC LED Chip 150ma 200ma LED Diodes Quartz Glass Lens

Description
Product Name: 2W 254nm UVC LED Chip 150ma 200ma LED Diodes Power: 2W
Input Voltage: 6.0-8.0V Input Current: 150-200mA
LENS: Quartz Glass Circuit: 1S1P
High Light:

2W UVC LED Chip

,

Quartz Glass UVC LED Chip

2W 254nm UVC LED Chip 150ma 200ma LED Diodes

Product Specification of 2W 254nm UVC LED Chip 150ma 200ma LED Diodes



models HY-SMD3535UVC-P2(250-260nm) HY-SMD3535UVC-P2(260-270nm) HY-SMD3535UVC-P2(270-280nm)
Electronic power 2.0W 2.0W 2.0W
Peak wavelength 250-260nm 260-270nm 270-280nm
Radiant power 20-35mW 20-35mW 20-35mW
Working current 150-200mA 150-200mA 150-200mA
Working voltage 6.0-8.0V 6.0-8.0V 6.0-8.0V
Circuit 1 chip 1 chip 1 chip
Packing technology New Generation Flip chip LG/Seoul semi/Dowa/PW New Generation Flip chip LG/Seoul semi/Dowa/PW New Generation Flip chip SLG/Seoul semi/Dowa/PW
LED Diode size 3.5*3.5mm 3.5*3.5mm 3.5*3.5mm
LENS Quartz Glass Quartz Glass Quartz Glass
View angle 120DEG 120DEG 120DEG
Substrate design ALN coppering ALN coppering ALN coppering
Thermal resistance 0.1-0.2C/W 0.1-0.2C/W 0.1-0.2C/W
Life span(LM50) 10,000 hrs 10,000 hrs 10,000 hrs

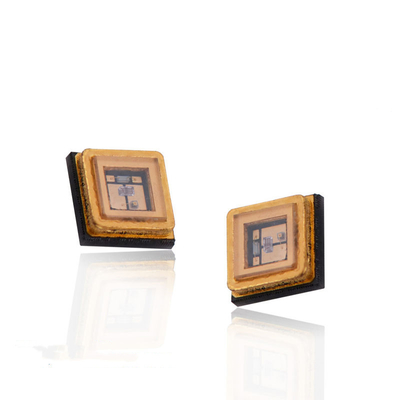

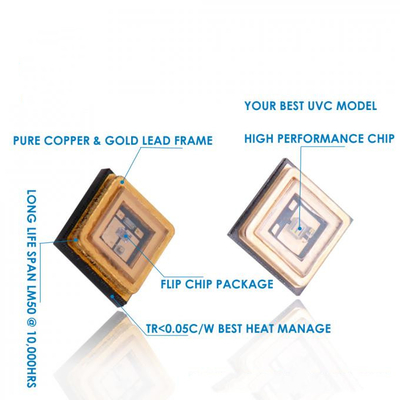

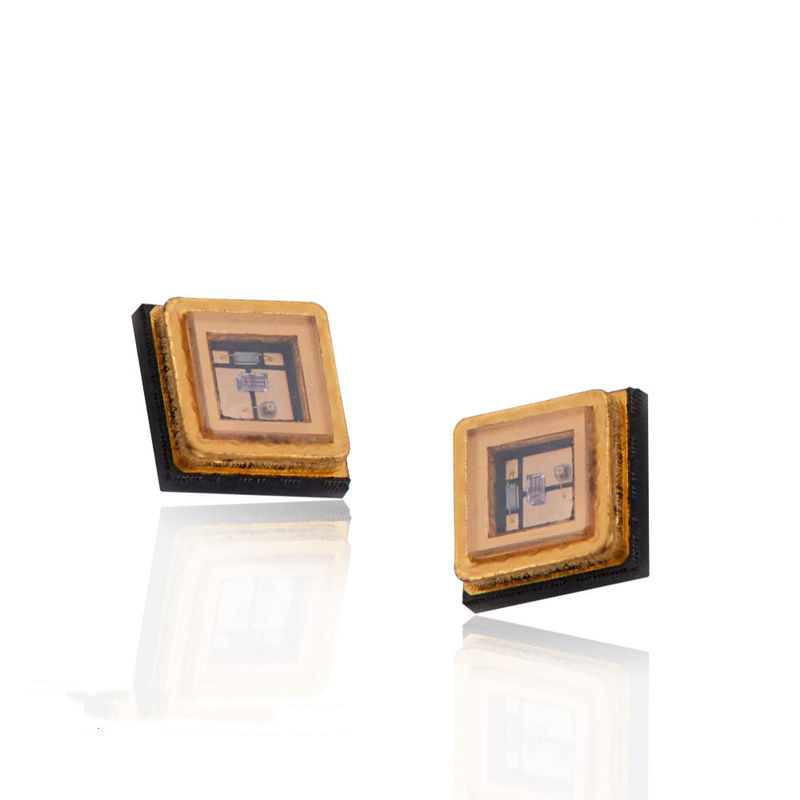

2W 254nm UVC LED Chip 150ma 200ma LED Diodes Quartz Glass Lens 0



2W 254nm UVC LED Chip 150ma 200ma LED Diodes Quartz Glass Lens 1



2W 254nm UVC LED Chip 150ma 200ma LED Diodes Quartz Glass Lens 2

2W 254nm UVC LED Chip 150ma 200ma LED Diodes Quartz Glass Lens 3



FAQ:

1,Prices conditions

Price can be FOB, CIF ,EXW, or With taxes


2,What will be the delivery time and what will be the mode of payment?

We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it needs to 3-5 days to customize.50K units is available for most of our models in normal color and sizes

The payment can be T/T transaction,Letter of credit,Paypal,Western Union


3,Shipment will be over sea or by air?

Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn’t too heavy for the transportation


4,Could you please send me the sample for the same.So that i could see and analyze its quality?

Yes.We can send samples first,samples need to be charged if the value is higher


5,Will there be any contract for this business or trade?

Yes,there is a normal contract before the order is placed

6,How will invoice be generated?

Invoice can be generated with formal contract with company seals
