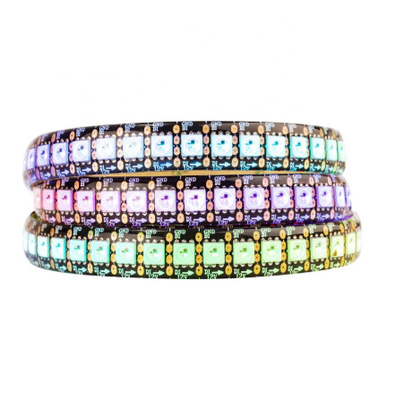

IP30 Programmable RGB LED Strip DC12V WS2815 3.28ft 144 Pixels

IP30 Programmable RGB LED Strip DC12V WS2815 3.28ft 144 Pixels
IP30 Programmable RGB LED Strip DC12V WS2815 3.28ft 144 Pixels
IP30 Programmable RGB LED Strip DC12V WS2815 3.28ft 144 Pixels IP30 Programmable RGB LED Strip DC12V WS2815 3.28ft 144 Pixels IP30 Programmable RGB LED Strip DC12V WS2815 3.28ft 144 Pixels IP30 Programmable RGB LED Strip DC12V WS2815 3.28ft 144 Pixels IP30 Programmable RGB LED Strip DC12V WS2815 3.28ft 144 Pixels IP30 Programmable RGB LED Strip DC12V WS2815 3.28ft 144 Pixels

Large Image :  IP30 Programmable RGB LED Strip DC12V WS2815 3.28ft 144 Pixels

Product Details:
Place of Origin: CHINA
Brand Name: HOYOL
Certification: CE/ROHS/FCC
Model Number: HY-WS2815-4
Payment & Shipping Terms:
Minimum Order Quantity: 200m
Price: negotiation
Packaging Details: Flexible strip with reel, Anti-static foil bag, Carton box
Delivery Time: 15-20 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 100000M per month

IP30 Programmable RGB LED Strip DC12V WS2815 3.28ft 144 Pixels

Description
Name: DC12V WS2815 3.28ft 144 Pixels IP30 65 67 RGB Dream Color Programmable Led Strip Lamp Body Material: Copper
CCT: RGB Lamp Luminous Flux(lm): 18-20lm/led
IP Rate: IP30/IP65/IP67 LEDs Number/M: 30/60/144
Light Source: SMD5050 Input Voltage(V): 12V
Working Lifetime(Hour): 50000 Warranty(Year): 1-Year
IC Type: WS2815 IC
High Light:

IP30 programmable rgb led strip

,

3.28ft programmable rgb led strip

,

programmable ws2812b led strip

DC12V WS2815 3.28ft 144 Pixels IP30 65 67 RGB Dream Color Programmable Led Strip

SMD5050 12V 30/60/144LED/M Flexible RGB Led Strip Lights For Party Decoration


Wide compatibility:
Can be controlled by Arduino, Raspberry Pi, Fadecandy, K1000C, SP105E, SP107E, SP110E etc.


12V WS2812B/WS2813 LED Strip:
WS2815 LED strip is upgraded version of 5V WS2812B LED strip. For 5M LED strip, even if all the LEDs are turned on full white, 12V version has no voltage drop. You don't need to inject power as frequently as 5V version.


Individually addressable:
Each pixel can have its own color and brightness. You can control it individually and set them to any color or animation you want. 256 brightness display and 24-bit color display.


Dual-signal wires:
WS2815 LED strip is Similar like the version of 5V WS2813 LED strip, Designed with one data wire and one backup data wire. Signal break-point continuous transmission. If one LED is damaged, the following LEDs can still work.


Easy installation:
Self-adhesive tape on back FOR IP30/IP65, it can be fixed on any dry and flat surface without any screws and clips. Each LED can be cut off at cutting line.
There are 4-pin JST SM connectors and separated power/ground wires on both ends, which make it easy to hook up each other and wire up for power.


Specifications:
IC type :WS2815 IC
Gray level: 256
View angle: 120°
Input voltage: DC12V
Color: full color 24-bit
FPCB board color: White/Black
Power: 0.3W/LED 30/60/144 LEDs/m
Model: WS2815 strip 5050rgb chips
Storage Temperature:-30-+95 °C
Operating Temperature:-20 ~ +85°C
Led Qty: 30/60/144pcs RGB SMD 5050 per meter

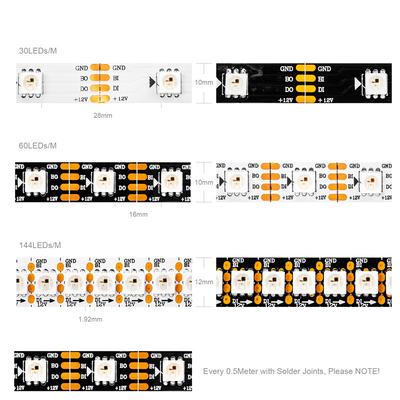

The distance between two LEDs:30Leds/m -- 28mm, 60Leds/m -- 12mm, 144Leds/m -- 1.92mm
Wave length(nm):Red,650nm ; Green,520nm ; Blue,460nm

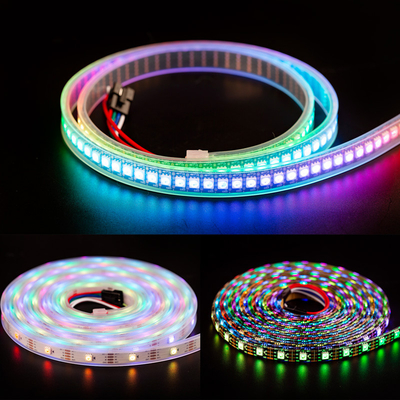

Waterproof level:

IP30 Non-waterproof
IP65 Silicon Coating

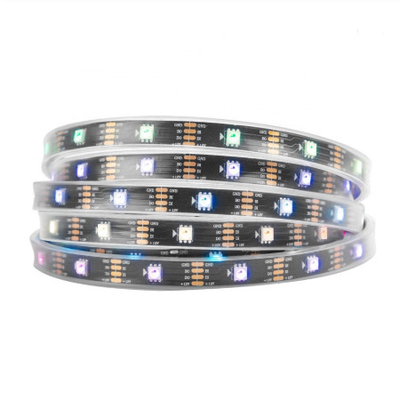

IP67 Silicone Tube (without adhesive)



Package includes:
1 x 1M/5M RGB 30/60/144leds/m led strip
1 x 4pin connector


Note:
Power adapter and controller are not included!
It is forbidden to light up for a long time when the strip is in the spool.
