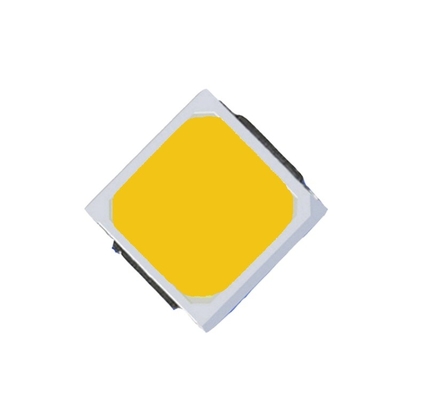

5054 SMD LED Chip 1w Natural White 5500K Long Lifespan For Street Light

Certification
China Shenzhen HOYOL Intelligent Electronics Co.,Ltd certification
China Shenzhen HOYOL Intelligent Electronics Co.,Ltd certification
Customer Reviews
Devoting Creates Value. Thanks for Hoyol's lasting supporting and guidence. With your help and instruction, I win more market share.

—— Gary Guillier-Marcellin

The shipment has arrived. I reviewed it and everything is very good. I appreciate your follow up on the shipment and as always the hard work of you

—— Jean-Philippe Illarine

Great factory scale, High technology and good reputation

—— Philippe BARTHELET

I'm Online Chat Now

5054 SMD LED Chip 1w Natural White 5500K Long Lifespan For Street Light

5054 SMD LED Chip 1w Natural White 5500K Long Lifespan For Street Light
5054 SMD LED Chip 1w Natural White 5500K Long Lifespan For Street Light 5054 SMD LED Chip 1w Natural White 5500K Long Lifespan For Street Light 5054 SMD LED Chip 1w Natural White 5500K Long Lifespan For Street Light

Large Image :  5054 SMD LED Chip 1w Natural White 5500K Long Lifespan For Street Light

Product Details:
Place of Origin: CHINA
Brand Name: HOYOL
Certification: CE/ROHS/FCC
Model Number: HY-SMD5054
Payment & Shipping Terms:
Minimum Order Quantity: 10kpcs
Price: 0.01usd/pcs~0.03usd/pcs
Packaging Details: Packed in carton
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 600kkpcs per month

5054 SMD LED Chip 1w Natural White 5500K Long Lifespan For Street Light

Description
Name: 5054 Smd Led Chip 1w Natural White For Street Light Size: 5.0x5.4mm
CCT Color: 5500K Power: 1W
Type: SMD5054 Lifetime: 50000h
High Light:

5054 SMD LED Chip

,

SMD LED Chip 1w

,

Street Light SMD LED Chip

5054 Smd Led Chip 1w Natural White For Street Light

Specification of 5054 smd led chips:

Model HY-SMD5054
Electronic power 1W
Workiing Voltage 3.0-3.2V
Working Current 350mA
working temperature Range -20°c  to 80°c
Storage Temperature Range -30°c  to 100°c
Lifespan 50000h
Certificate CE&ROHS&LM80
Color Warm White/Natural white/Day White/Cold white/Yellow Gloden/Red/Yellow/Amber/Orange/Royal Blue/Ice blue/Cyan/Green/Deep RED/IR
/UV/Nir Red/ RGB/ BI-Color

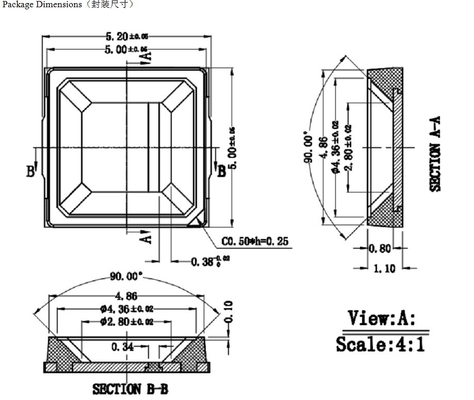

Whole Size 5.0*5.4mm
Lens Water Clear/ Cloudy
Avaliable Angle 120°



5054 SMD LED Chip 1w Natural White 5500K Long Lifespan For Street Light 0



5054 SMD LED Chip 1w Natural White 5500K Long Lifespan For Street Light 1



5054 SMD LED Chip 1w Natural White 5500K Long Lifespan For Street Light 2



Attention:

  1. overcurrent protection customers must use resistance to protect, otherwise the drift of the voltage will cause a large change in the current (occurrence of breakdown phenomenon). When the lamp bead is used, the current must be within the specified range to avoid the bad caused by excessive current..
  2. Do not open the moisture-proof bag before preparing to use the product. Before opening, please check the packing bag for air leakage, after opening the bag, check the humidity mark card 20% rh whether the mark area from blue to pink. Please contact the manufacturer or return to the manufacturer for high temperature dehumidification ,(high temperature dehumidification environment :120 degrees ,6 h) do not handle.
  3. Before opening the package, leds should store temperature less than 30℃, humidity less than 70% rh.
  4. When the package is opened, the temperature is below 30℃ and the humidity is below 60% rh, and the opening-to-weld finish is controlled at 4 h.
  5. When the hygroscopic material (silica gel) has subsided or the leds has exceeded the storage time, baking treatment is required based on the following conditions :60±5℃/24 hours.

FAQ:

  1. Q1: Do you supply OEM,ODM service?
    A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
    Q2: All the pictures are real photo?
    A2: Yes, the pictures of all products on this page are 100% real shoot by us.
    Q3: How can I get a quotation from you?
    A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.
    Q4: Is there any discount for bulk order?
    A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
    Q5: Do you support drop shipping and how much is the shipping cost?
    A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
    Q6: How to place an order?
    A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
    Q7: What payment terms are available?
    A7: T/T,PayPal, Western Union and Secure Payment.
