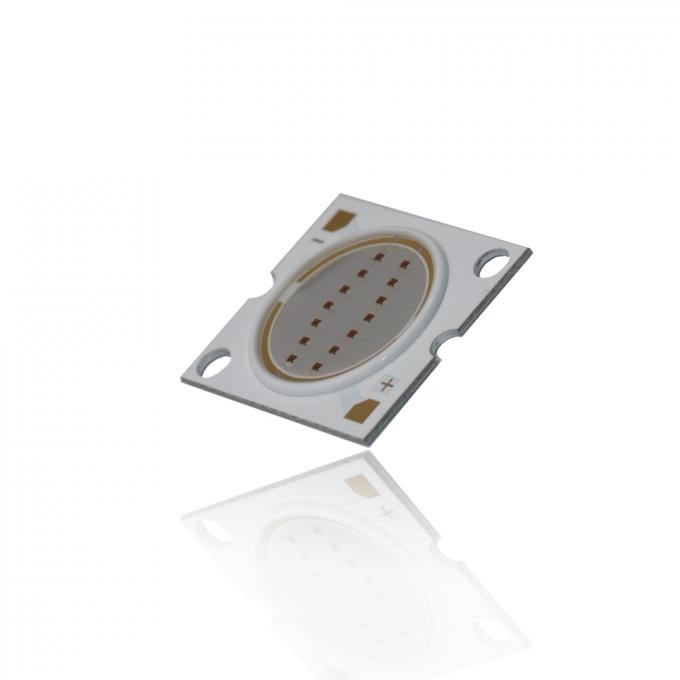

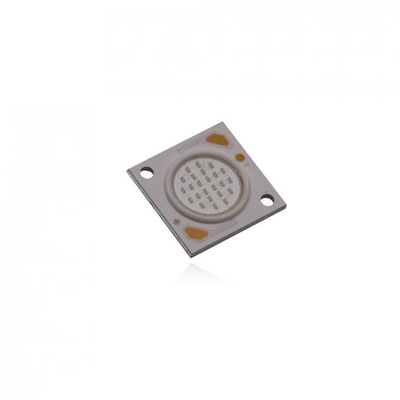

2325 Series 40W COB LED 1200mA RGB 460nm 520nm 620nm COB LED Chip

2325 Series 40W COB LED 1200mA RGB 460nm 520nm 620nm COB LED Chip
2325 Series 40W COB LED 1200mA RGB 460nm 520nm 620nm COB LED Chip 2325 Series 40W COB LED 1200mA RGB 460nm 520nm 620nm COB LED Chip 2325 Series 40W COB LED 1200mA RGB 460nm 520nm 620nm COB LED Chip 2325 Series 40W COB LED 1200mA RGB 460nm 520nm 620nm COB LED Chip

Large Image :  2325 Series 40W COB LED 1200mA RGB 460nm 520nm 620nm COB LED Chip

Product Details:
Place of Origin: CHINA
Brand Name: HOYOL
Certification: CE/ROHS/FCC
Model Number: HY-CAS23SR/G/B
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 0.6usd/pcs~2usd/pcs
Packaging Details: Packed in carton
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 600kkpcs per month

2325 Series 40W COB LED 1200mA RGB 460nm 520nm 620nm COB LED Chip

Description
Name: 2325 Series 40W Cob LED 460nm 520nm 620nm LED COB Chips Size: 23x25mm
CCT Color: RGB Power: 40W
Les: R20mm IF: 1200mA
High Light:

RGB 40W COB LED

,

2325 Series COB LED Chip

,

1200mA COB LED Chip

2325 Series 40W Cob LED 460nm 520nm 620nm LED COB Chips

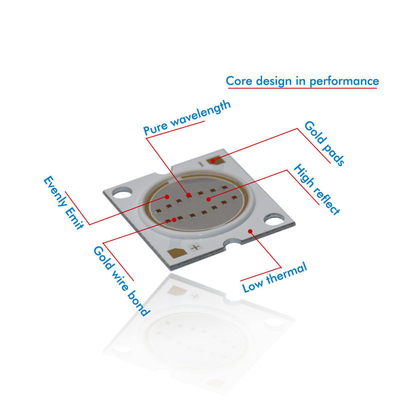

Design Advantage of 2325 Series 40W Cob LED 460nm 520nm 620nm LED COB Chips:

1,No glare light
2,Color consistance
3,Low life decay
4,Low thermal resistance
5,High CRI 80/90/95+
6,High standard raw materials proovide


Product Specifications



Models HY-CAS23SG-P50-20 HY-CAS23SG-P50-20 HY-CAS23SG-P50-20
POWER 40W 40W 40W
CCT RED=620-630nm GREEN=520-530nm BLUE=460-470nm
LUMINUOUS EFF 40-60lm/w 90-110lm/w 20-30lm/w
IF 1200mA 1200mA 1200mA
VF 20-24V 30-34V 30-34V
CIRCUIT 10S8P 10S8P 10S8P
WHOLE SIZE 23*25mm 23*25mm 23*25mm
LES R20mm R20mm R20mm
VIEW ANGLE 120° 120° 120°
SUBSTRATE MIRROR ALU MIRROR ALU MIRROR ALU
CHIPS EPISTAR OR EPILED EPISTAR OR EPILED EPISTAR OR EPILED




2325 Series 40W COB LED 1200mA RGB 460nm 520nm 620nm COB LED Chip 0



2325 Series 40W COB LED 1200mA RGB 460nm 520nm 620nm COB LED Chip 1
