High Power 120W COB LED Chip100-120lm/W Super Aluminum Substrate LED COB Chips

Large Image : High Power 120W COB LED Chip100-120lm/W Super Aluminum Substrate LED COB Chips

Product Details:

Place of Origin:	CHINA
Brand Name:	HOYOL
Certification:	CE/ROHS/FCC
Model Number:	HY-CAS40CW-P120

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable price
Packaging Details:	Packed in carton
Delivery Time:	3-5 working days after received your payment
Payment Terms:	T/T, Western Union
Supply Ability:	600kkpcs per month

Contact Now

High Power 120W COB LED Chip100-120lm/W Super Aluminum Substrate LED COB Chips

Description

Name:	High Power Led Cob Chips	Size:	40X46mm
CCT Color:	20000-30000K	Power:	120W
LES:	13X16mm	SUBSTRATE:	Super Aluminum
High Light:	120W COB LED Chip , High Power COB LED Chip , Aluminum Substrate LED COB Chips

High Power 120W 20000-30000K 100-120lm/W Super Aluminum Substrate Led Cob Chips

Design Advantage of High Power 120W 20000-30000K 100-120lm/W Super Aluminum Substrate Led Cob Chips:

1,No glare light
2,Color consistance
3,Low life decay
4,Low thermal resistance
5,High CRI 80/90/95+
6,High standard raw materials proovide

Product Specifications

Models	HY-CAS40CW-P120
Electronic power	120W
CCT	20000-30000K
Luminous efficiency	100-120lm/w
Working voltage	30-34V
Circuit	10S24P
Size	40X46mm
LES(Diameter)	13X16mm
View angle	120DEG
CRI	>70
SUBSTRATE	Super Aluminum

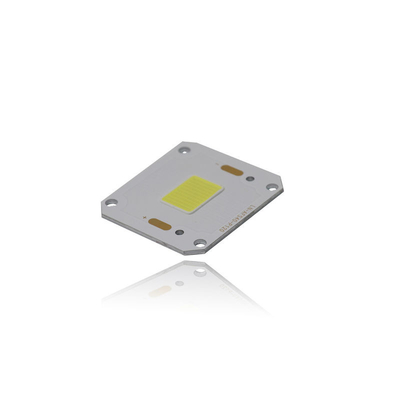

High Power 120W COB LED Chip100-120lm/W Super Aluminum Substrate LED COB Chips 0

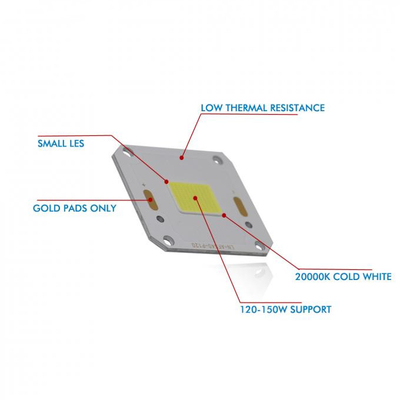

High Power 120W COB LED Chip100-120lm/W Super Aluminum Substrate LED COB Chips 1

High Power 120W COB LED Chip100-120lm/W Super Aluminum Substrate LED COB Chips 2
